RG-1008-YOKE-ICE PACKAGE   |
PACIFIC BLUE-DIVE ADJUSTABLE REGULATOR
 2010
RRP:
|
|
|
RG-1012-YOKE-ICE PACKAGE  |
PACIFIC BLUE-DIVE ADJUSTABLE REGULATOR
2010
RRP:
|
|
|
RG-1011-YOKE PACKAGE  |
PACIFIC BLUE-DIVE ADJUSTABLE REGULATOR
2010
RRP:
|
|
|

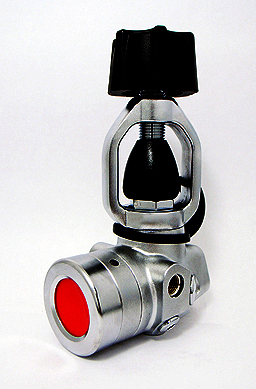

RG1008-YOKE-ICE |
PACIFIC BALANCED DIAPHRAGM 1ST STAGE REGULATOR
2010 1. FINISHED: SATIN AND WHITE CHROME 2. VENTILATION RATE: AIR SUPPLY/ 3000 PSI : 135SCFM 3. INTERMEDIATE PRESSURE: 135-145 PSI 4. HIGH PRESSURE PORT: (7/16-20) X 2 5. LOW PRESSURE PORT: (3/8-24) X 4 RRP: |
|
|

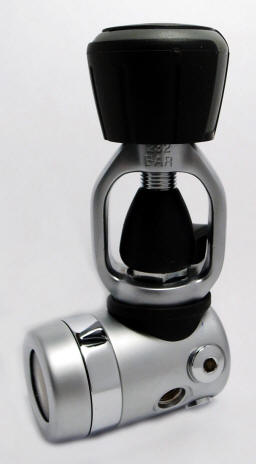

RG1012-YOKE-ICE |
PACIFIC HYPER-BALANCED DIAPHRAGM 1ST STAGE
REGULATOR
20101. FINISHED: SATIN AND WHITE CHROME
2. TYPE: BALANCED DIAPHRAGM, ENVIRONMENTALLY SEALED DESIGN
3. VENTILATION RATE: AIR SUPPLY/ 3000 PSI : 110 SCFM (3200 L/MIN) 4. INTERMEDIATE PRESSURE: 135-145 PSI 5. HIGH PRESSURE PORT: (7/16-20) X 2 6. LOW PRESSURE PORT: (3/8-24) X 4
RRP:
|
|
|

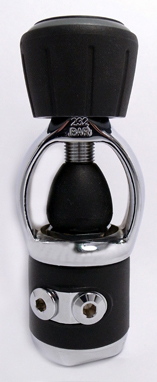

RG1011-YOKE |
PACIFIC HYPER-BALANCED DIAPHRAGM 1ST
STAGE REGULATOR
20101. FINISHED: WHITE CHROME
2. TYPE: BALANCED DIAPHRAGM
3. VENTILATION RATE: AIR SUPPLY/ 3000 PSI : 90 SCFM (2600 L/MIN) 4. INTERMEDIATE PRESSURE: 135-145 PSI 5. First stage completely protected by an elastomeric shell.
6. HIGH PRESSURE PORT: (7/16-20pitch) X 1
7. LOW PRESSURE PORT: (3/8-24pitch) X 3 RRP: |
|
|

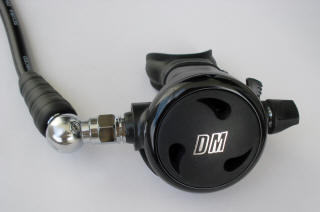

RG-11-PACKAGE
|
PACIFIC ADJUSTABLE SECOND STAGE REGULATOR
2010FOR HARD-CORE DIVER IN EXTREME ENVIRONMENT TECHNICAL SPECIFICATION
1.
TYPE: Downstream Demand Valve with Twin air intake
2.
INTERMEDIATE PRESSURE: 145 PSI
3.
CRACKING EFFORT: 0.8-1.4 CIW (Column inches of Water)
WOB @ 50M: 0.8 J/L
4.
FLOW RATE: 30+ SCFM (AIR SUPPLY: 3000P PSI)
5. LP Hose, 250PSI, 36" Black. 6. PACIFIC360 degree Regulator SWIVEL 7. soft PU COVER 8. Hose protector, Rubber for 2nd Stage
RRP:
|
|
|

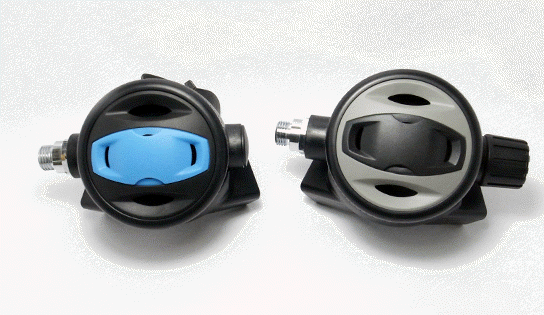

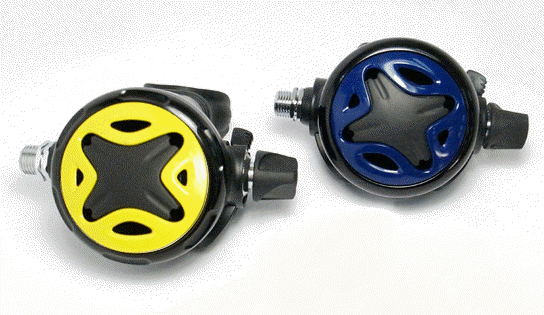

RG-12 New Cover design
|
 |
|
|
RG-13 New Cover design
|
|
