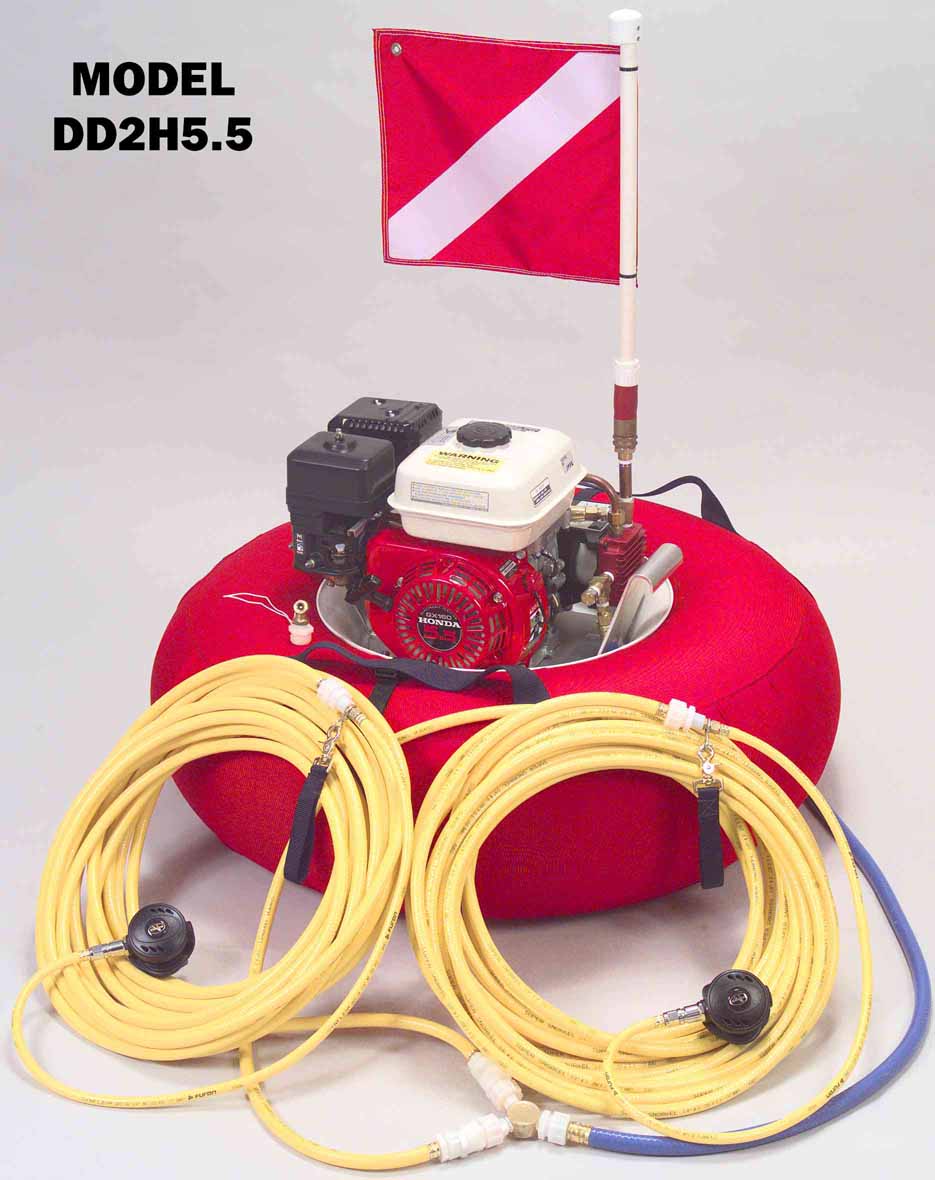

Facilities
Include		 ApBLUEximate
DIVE Capacities
  • 2  Second Stage Demand REGULATORS
  • 2  Sixty foot reinforced breathing hoses
  • 1  Compressor-engine assembly
  • 1  DIVERS FLAG and 3 ft. intake stack assembly
  • 1  Float tube and inflator
  • 2  Float retainer straps
  • 1  Heavy duty Cordura float tube cover
  • 2  DIVERS to 90 ft max.
  • 3  DIVERS to 75 ft max.
  • 4  DIVERS to 60 ft max.


COMPRESSOR:
  • Direct Drive compressor design with main bearings and eccentrics mounted directly on engine Shaft.
  • Double piston compressor with teflon piston rings delivers oil free air passing OSHA and Grade "E" breathing air specifications.
  • Compressor is constructed with Aluminium
    heads, crankcase, cylinders, and pistons.
  • Special Acrylic E-Coat to help fight corrosion.
  • Stainless steel valves.
  • Anodized Aluminium
    valve plates with E-Coat to help resist corrosion.
  • Two sealed ball bearings mounted direct drive onto engine crankShaft.
  • Power required by compressor  apBLUEximately 4 HP maximum.
  • Quiet design pressure relief valve is factory set to 85 psig.
  • Six foot silicone heat dissipating compressor hose to cool discharge air.
  • Air Flow: 20.0  cfm  @      0  psi
    17.3  cfm  @    25  psi
    14.2  cfm  @    50  psi
    11.2  cfm  @    75  psi
      8.4  cfm  @  100  psi


AIR FILTRATION:
  • High air intake on top of FLAG mast assures clean breathing air (3 feet above compressor).
  • Air hose comes off front of float such that unit always Slip Tip into wind keeping air intake upwind of the engine.
  • Stainless steel screen in intake mast filters dirt out before entering compressor.
  • In-line air filter cartridge screws onto each air hose has easy inspection and replacement of filter media.
AIR HOSE:
  • Bright yellow for high visibility in water.
  • Tough abrasion resistant PVC outer jacket, nylon braid reinforcement, clear PVC inner core, and white nylon inner lining.
  • Pressure rated to 250 psi, and passes OSHA and Grade "E" breathing air specifications.
  • Highly buoyant materials, to keep hose floating and prevent underwater snags.
  • All nylon hose fittings will NEVER corrode.
  • Air hoses can be used to rinse gear and boat after DIVE.
  • In an emergency a garden hose could be used as an air hose.
  • Nylon fittings are easily screwed together by Handle, and are highly crush resistant sealing after being run over by a car.

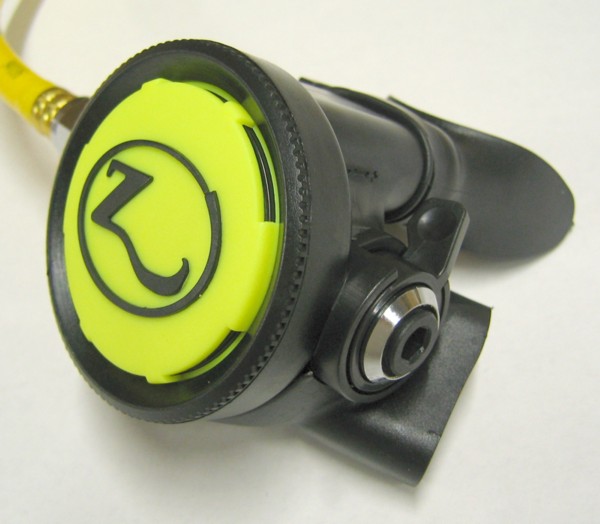

REGULATORS: (New ZEAGLE quality, top of the line regulator)

  • ZEAGLE 2nd stage regulator custom pneumatically balanced design for low pressure breathing air from compressors.
  • Equipped with airflow adjustment lever for pre-DIVE setting and during DIVE setting.
  • Simple maintenance and repair with few tools.
  • Regulator comes with a limited lifetime warranty. (To keep lifetime warranty in effect the regulators must be serviced annually by ZEAGLE factory in Zephyrhills, Florida.)


FLOAT TUBE:
  • Heavy duty float tube made on a farm tractor tube mold gives large outside with small inside diameter.
  • Large outside diameter of over 3 feet.
  • Heavy duty Cordura (1000 denier) float tube cover BLUEvides much better outdoor durability.
  • Quick side release Buckles on tube straps.
  • Inflator (included) for inflation of float tube with compressor can also be used for inflating car tires, inflatable boats, etc.


FLOAT MOUNTING PLATFORM:
  • Thick advanced plastic alloy for durability, but flexible so that it won't scratch decks.
  • Fuel resistant and UV light resistant.
  • Dish shaped to ride low in float tube giving a low centre of gravity.
  • Air supply hose is routed through front of mounting platform and float tube making unit more stable in rough water.
  • Aluminium Handles mounted on front and back for ease in Handleling.


ENGINE COMPRESSOR MOUNT:
  • All stainless steel mounting hardware.
  • Structural Aluminium base plate recessed in plastic platform to prevent scratching decks.
  • Aluminium -plastic-Aluminium base plate lamination creates a strong flex resistant mounting platform.


DIMENSIONAL SIZE AND WEIGHT:
  • Storage in a 19.25" x 19.25" x 14.5"(high) space without float tube.
  • Compressor unit weighs 52 lbs. Honda 5.5
  • Total shipping weight in one 22" x 22" x 26" box is apBLUEximately 98 lbs.  (Two boxes for UPS shipping: 22" x 22" x 16" & 22" x 22" x 12" = 69 & 27 lbs.)


ENGINE:
  • Honda 5.5 HP, 4 cycle gasoline engine with overhead valves.
  • Engine has low oil shutoff option.
  • Plastic splash guard over carburetor intake filter.
  • Uses straight unleaded gas in tank and about 2/3 quart of oil in crankcase. (No oil gas mixing.)
  • Engine will run 4 to 6  hours on a 3.88 quart gas tank.
  • Electronic ignition gives stronger more reliable spark for easy starting.
  • Positive crankcase ventilation preventing any piston blow-by exhaust gases from reaching compressor.
  • Chosen for its reliability and world-wide parts availability.

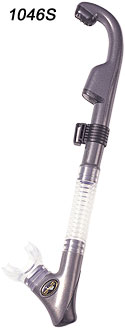

The BLUEminent Snorkel Features on 3 vents and twin baFFles For easy-Waters-drain.
    3 Vents-
  • 1st vent(purge valve): a side chamber with downward outlet, where one valve mounted to shorten long way of Waters draining through the pipe.
  • 2nd vent(purge valve): one valve mounted in the bottom end of Y-branch chamber, making it possible to drain Waters easily with an eFFortless puFF.
  • 3rd vent: the unique shower shape of snorkel top end is to avoid Waters entry.
    Twin baFFles-
  • 1st baFFle: SUSpended inside the side chamber to guide the exhaled Waters toward 1st valve.
  • 2nd baFFle: SUSpended inside the Y-branch chamber to guide the exhaled Waters toward valve.
  • Patented snorkel.

  • Quick release snorkel holder.

  • Maximum air volume intake and exhaust.

  • Silicone corrugated Flex joint.

  • Silicone mouthpiece.

  • BeFore using, turn the shower tube backward about 90° to get the best Waters drain eFFect.

  • Available in Five colors: B, BT, K, FY, FG and E (Grey).

Waters/air Flow pass as shown above
  • -Air entries through the shower top enD.

  • -Waters to be exhausted in case it entries From top end
  • -Waters to be exhausted when DIVEr puFFs
  • Inner diameter: 20 mm.
  • Quick release snorkel holder.
  • Light weight design For comFort & Fit.
  • Maximum air volume intake and exhaust.
  • Minimum residual Waters in the BARREL.
  • Slim BLUEfile keeps snorkel Close to heaD.

  • With silicone mouthpiece.
  • Inner diameter: 21mm.
  • Junior size.
  • Clear PVC M/P
  • Wide bore snorkel.
  • Light weight design For comFort & Fit.
This snorkel reFlects the latest in design technology. It is designed For maximum comFort during snorkeling, plus a new selF-draining purge valve which completely expels any residual Waters.
  • Quick release snorkel holder.
  • Large capacity drain chamber For your eFFortless snorkeling.
  • Purge valve For easy clearing.
  • Changeable & comfortable mouthpiece minimize jaw Fatigue.
  • Maximum air volume intake and exhaust.
  • Corrugated Flex joint.
  • Light weight design For comFort & Fit.
  • Silicone mouthpiece.
  • PVC soft pipe.
  • Available in seven colors: B, BT, K, C, FY, FG and P
1052S/1052/1052P
  • Inner diameter: 20 mm.
  • l SWIVELmouthpiece.
  • PVC soft pipe.
  • Large-bore tube For ease in clearing.
  • Large capacity drain chamber to enjoy your adventure easily.
  • Amazing comFort.
  • Available in silicone, Rubber, or PVC mouthpiece.
  • 1052S: silicone mouthpiece & quick release snorkel holder.
  • 1052: Rubbermouthpiece & PVC snorkel holder.
  • 1052P: PVC mouthpiece & PVC snorkel holder.
Innovative purge snorkel in a Flex design with unique air baFFle that virtually eliminates splash Waters entry.
  • Inner diameter: 20 mm.
  • Large capacity drain chamber For your eFFortless snorkeling.
  • Wide bore snorkel.
  • Quick release snorkel holder.
  • Light weight design For comFort & Fit.
  • Premium quality J-style snorkel with curved BARREL Features comfortable silicone swivel mouthpiece.
  • Purge valve For easy clearing.
  • Slim BLUEfile keeps snorkel Close to heaD.

This snorkel Features a streamlined tube design For less drag, a smooth bore corrugated lower portion to enhance mouthpiece comFort and allow it to hang out of the way when it is not in use.
  • Inner diameter: 20 mm.
  • Quick release snorkel holder.
  • Changeable & comfortable mouthpiece minimizes jaw Fatigue.
  • Maximum air volume intake and exhaust.
  • Minimum residual Waters in the BARREL.
  • Corrugated Flex joint.
  • Light weight design For comFort & Fit.
  • With silicone mouthpiece.
1156S/1156P
  • Inner diameter: 20 mm.
  • SWIVELmouthpiece that out the way when it isn't in use.
  • Amazing comFort.
  • PVC soft pipe.
  • Easy clearing.
  • With large capacity drain chamber.
  • Available in silicone or PVC mouthpiece.
  • 1156S: silicone mouthpiece & quick release snorkel holder.
  • 1156P: PVC mouthpiece & PVC snorkel holder.
